RF & MRI Door
The only moving part is the most critical part.
![](https://nelcouk.wpenginepowered.com/wp-content/uploads/2015/01/guardianmridoor_tab_3.jpg)
Features & Highlights
Versatility
For use in new facilities and upgraded RF shield enclosures
Performance
Highly efficient, low maintenance
Warranty
Limited Lifetime Warranty
Top-Line Tech Specs
Product

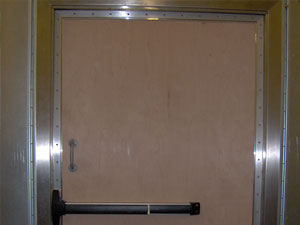

GUARDIAN™ MRI Swing Door
Usage
MRI scan rooms, RF shielded labs and test rooms
Structure
Stainless steel threshold and jambs integral with RF shielded door
Dimensions
4′ x 7′ standard, custom sizes available
Construction
Solid core, both sides laminated
Door Hardware
Panic bar/lever handle with locking cylinder
Exterior Finish
Aluminum trim and unfinished wood veneer applied to both sides;
custom laminates available
Acoustic Option Available
Components
Fingerless Seal: NELCO uses a fingerless seal of continuous brass expansion strips that are durable and snag-free.
Operating System/Manual Latching Device
Door Frame: A stainless steel frame is built with tapers on all faces to create a bond with all RF door seals.
Door Leafs: Leafs are solid core and laminated on two sides with 12-ounce copper
Door Hinges: Factory mounted, stainless steel ball bearing hinges
Threshold: The threshold is an integral part of any RF door. NELCO preassembles the threshold and door frame as one unit for optimal shielding integrity.
Door Finish: NELCO offers several veneer and laminate options to ensure the door matches your hospital’s décor.
Optional Pneumatic System: NELCO’s GUARDIAN™ Door can have a pneumatic sealing option that creates a tighter RF seal.
Other Optional Door Features:
- Acoustic dampening
- Pneumatic activation
- Keypad entry device
- Vision panels
- Motion sensors
- Electric operator
- Custom sizes
